Dock Shelters

Rated 4.5/5 based on 1reviews

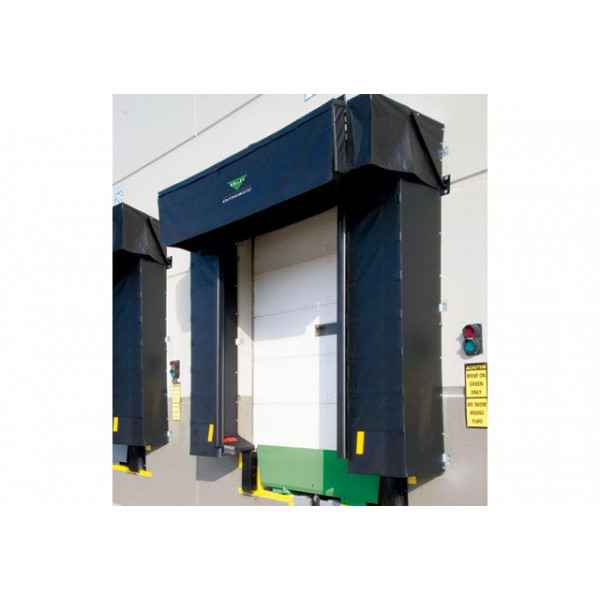

Dock Shelters Dock Shelters Features: For use with doors up to 10’W x 10’H. Reduces oversized doors to match truck opening. Long wear Vestex V-42 fabric is highly resistant to abrasion an

Dock Shelters

Dock Shelters Features:

For use with doors up to 10’W x 10’H. Reduces oversized doors to match truck opening. Long wear Vestex V-42 fabric is highly resistant to abrasion and tearing. Fiberglass staves are sewn into the flaps. Seal is formed along the sides and top of trailer when the vertical and top panels are pushed inward by the trailer. Recommend minimum 10″ trailer penetration for a good seal. Supporting structure is made of 2 x 4 wolmanized lumber.

Shelter is protected by safety yellow steel guide protectors. The top header piece measures 132″W and contains a drop curtain which measures 36″H. Two vertical pieces measure 126″ tall with vertical flaps measuring 21″W. When installed the shelter will close door opening down to 90″W x 90″H opening (between flaps). Includes two yellow steel guide protectors and foam-filled corner pads for extra sealing action.



Dock Shelters

Model Number

PDF

Projection

Overall Height

Overall Width

Door Opening

Weight lbs.
D-750-1818″126″132″10’x10′418
D-750-2424″126″132″10’x10′478
D-750-3030″126″132″10’x10′518
D-750-3636″126″132″10’x10′563



Dock Shelter Options

Model Number

Description
D-FHPFSFull height pleats, full height guide stripes
D-FHPSFull height pleats, standard guide (24″ high)
D-APArmor pleats, top 24″ only
D-54OZ54 ounce material – face only
D-18H18″ header
D-SVSloped verticals
D-BBFBottom Bun
D-BBFBBottom bun with bumpers
D-GSFull height guide stripes
D-12F12″ flap
D-SIDEDock seal sides between 97″ and 120″
D-KITRepair kit.  Includes: (2-Pcs.Of 18oz Vinyl 12″x36″; 2-Pcs Of 18oz Vinyl 12″x24″; 2-Pcs.Of 18oz Vinyl 12″x12″; 1 Can Of Glue)

Please contact Industrial Manlifts for specifications and RFQ’s.
