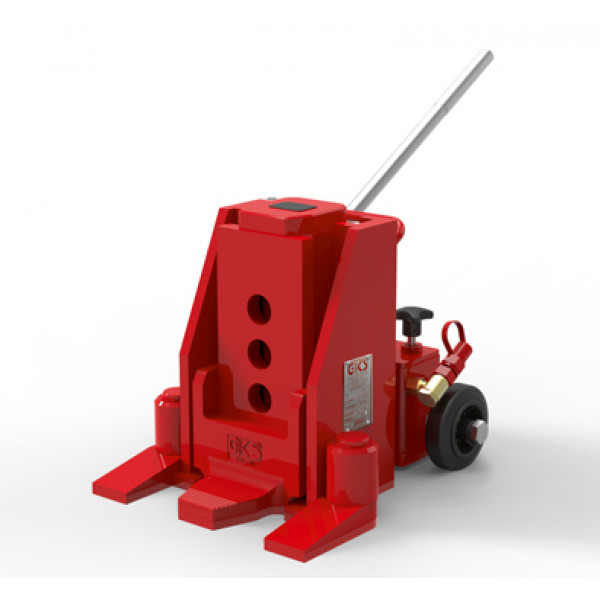

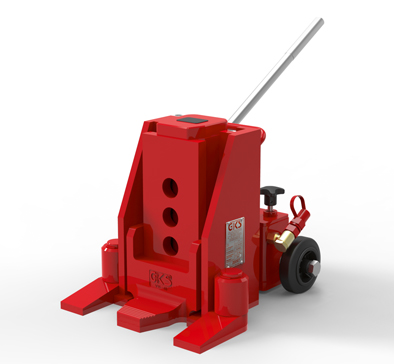

V15 HYDRAULIC TOE JACK

KEY FEATURES

• Forged, steel safety toe; which is more durable than cast steel

• Same capacity on the toe and the head

• Ability to operate with the manual lift or a hydraulic pump

• 5-year warranty

PRODUCT DESCRIPTION:

Factories and workshops with heavy lifting needs require extremely sturdy, heavy-duty floor jacks. The 15-ton (33,000lbs.) capacity V15 Toe Jack is built to meet those needs.

The V15 as an extremely sturdy, easy-to-operate, indoor and outdoor floor jack that can handle a full 15-ton (33,000 lbs.) load on both the toe and top plate. Self-contained, the V15 features a minimum load height of just 25 millimeters (1in.), wheels that facilitate easy rolling, and a lifting capacity that can be doubled when operated in tandem with a second hydraulic toe jack using an external PV Hand Pump.

Available in a nickel-plated version for use in clean rooms, the The V15 toe jack is designed to handle jobs in factories, on shop floors, for assembly lines and even at remote locations.

The V15 toe jack is manufactured to high safety standards. It includes a release valve that lowers loads precisely and carefully, plus a safety valve for overload protection. Additionally, the V15 is built with a one-piece, height-adjustable safety toe.

All  toe jacks are quality built and made from high-grade materials, include precision guide-ways and are ready to use when they arrive on site. The V15 toe jack also incorporates a modular design that facilitates easy service, and comes with a five-year limited warranty, plus lifetime technical support. To assure optimal functionality and appearance, 100 percent of our heavy-duty jacks pass a thorough testing and approval process before leaving the factory. Every jack must meet Testmark BGV D8 (Germany) and ANSI/ASME (USA) standards.

ADDITIONAL INFORMATION
Load Capacity 33,000 lbs. (15 t) /150kN
Stroke 6.3" (160 mm)
Loading Height Toe min 1" (25 mm)
Toe max 6.9" (175 mm)
Top Plate 12.5" (318 mm)
Top Plate LxW 3.6 x 3.3" (95 x 88 mm)
Lift Toe Positions 4
Working Pressure 7,542 psi (520 bar)
Dimensions LxWxH 13.9 x 12.0 x 12.5"
353 x 304 x 318 mm
Weight 117 lbs (53 kg)
Item Number 10183

Additional information

Weight 117 lbs
Dimensions 13.9 × 12 × 12.5 in
