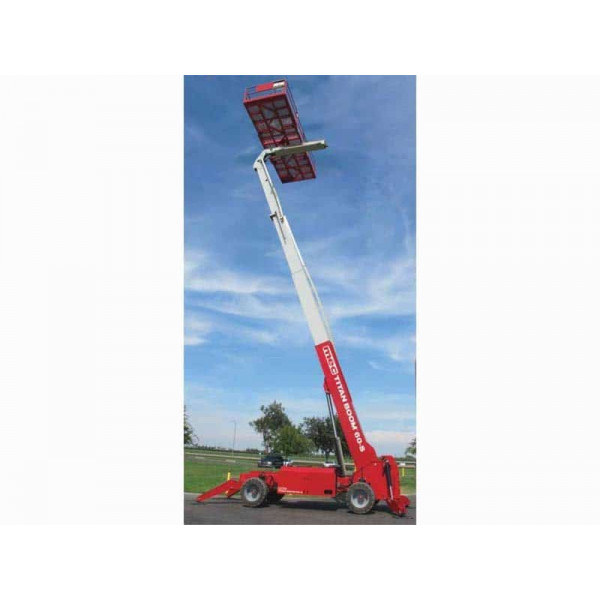

60-S Titan Boom Lift

Rated 4.5/5 based on 1reviews

Construction Grade 60-S Self-Propelled Boom Lift Up to 66€™ (20 m) working height Ultra-Deck with 3,000 lb (1350 kg) combined material and personnelcapacity Huge 22 feet x 90 inch (6.7 m x 2.28 m)

Construction Grade 60-S Self-Propelled Boom Lift

  • Up to 66€™ (20 m) working height
  • Ultra-Deck with 3,000 lb (1350 kg) combined material and personnelcapacity
  • Huge 22 feet x 90 inch (6.7 m x 2.28 m) deck area
  • Three steering modes: 2-Wheel Steer,4-Wheel Steer, and Crab Steer
  • Amazing 180° platform rotation plus additional telescope to get in close to work areas
  • Frame leveling up to 10° each side
  • Dual sliding centered side rails for fast and simple material loading into Load Zone
  • Smooth, fully-proportional controls on all boom and drive functions
  • 40% Gradeability
  • Stabilizer support for platform stability on heavy duty job sites with one-touch auto-leveling

60-S Titan Boom Lift Features:

Work Area

  • Non-skid Metal Deck Construction
  • 3,000 lb (1350 kg) Combined Platform Capacity:
  • 2,000 lb (900 kg) Material Load Zone in Center of Platform
  • 1,000 lb. (450 kg) Distributed Load for up to four (4) Workers and Tools
  • Easy Access Sliding Side Gates for material loading
  • Stainless Steel Wire Rope Lanyard Anchors for full platform mobility
  • Pinless Guardrail System for quick & simple guard rail lowering
  • AC Power to the Platform

Performance

  • Fully Proportional Drive and Lift Controls
  • Oscillating front and rear axles for frame leveling ability
  • 18€ (.46m) ground clearance
  • High-Torque Power Package with Four Wheel Drive
  • 180° Platform Rotation
  • Dual front and rear Stabilizers
  • One-Touch Chassis Leveling
  • Control System
  • Triple Joystick Interface
  • Fully Proportional Multi-Function Controls

Engine/Power

  • Two-speed Drive Motors
  • Kubota Turbo Diesel Engine
  • Engine Shutdown Protection

Serviceability

  • Large Swing Module Doors for access to all components
  • On-board Diagnostics Center
  • Logically grouped components and numbered wiring for easy reference

Safety & Other Features

  • 12V DC Auxiliary Power Unit
  • Multi-Axis Tilt sensor
  • Tilt Alarm and Horn
  • Foam-Filled R4 Lug Tread Tires
  • Four Wheel Disc Brakes
  • Platform Swing Gate
  • Hour Meter
  • Powder Coat Finish
  • Machine Tie-Downs

60-S Titan Boom Lift Specifications:

 DIMENSIONS
 Length 23 ft. (7 m)
22 ft. 6 in. (6.9 m) with ladder removed
 Height 66 ft. (20 m) working
40 ft. (12.2 m) maximum drive
80 in. (2 m) loading height
94 in. (2.4 m) with rails folded
 Width 102 in. (2.6 m)
144 in. (3.7 m) with stabilizers down
91 in. (2.3 m) shipping
 Weight 39.700 lbs. (18,000 kg)
 Ground Clearance 16 in. (41 cm) under axles
18 in. (46 cm) under center of machine
 Wheelbase 160 in. (4 m)
 Turning Radius 10 ft. (3 m) inside
24 ft. (7.3 m) outside
 ENGINE & DRIVETRAIN
 Engine Make Kubota
 Engine Model V-3800T
 Engine Type Turbo
 Horsepower 100 hp (74 kW)
 Fuel Type Diesel
 Fuel Tank Capacity 40 gal. (150 l)
 Drive System 2WS, 4WS, crab steer
 HYDRAULICS
 Hydraulic Tank Capacity 50 gal. (190 l)
 PERFORMANCE
 Travel Speed 4 mph (6.4 km/h) stowed
0.5 mph (0.8 km/h) elevated
 Gradeability 40% / 22°
 Capacity 3,000 lbs. (1,350 kg) total
2,000 lbs. (900 kg) material loaded (within load zone)
1,000 lbs. (450 kg) personnel and equipment
 Platform Height 60 ft. (18.3 m)
 Platform Size Length: 22 ft. (6.7 m)
Width: 90 in. (2.28 m)
 Horizontal Reach Translation: 75 ft. @ 24 ft. elevation (23 m @ 7.3 m elevation)
 Boom Lift Speed: 60 sec
Extend Speed: 45 sec
Lift & Extend Combined Speed: 75 sec
 Rotation Platform: 180° (+90°, -90°)



Industrial Manlifts is YOUR total aerial access solution provider. We can customize any aerial access solution for any project. Operators standing by, (888) 730-8377.
