Description

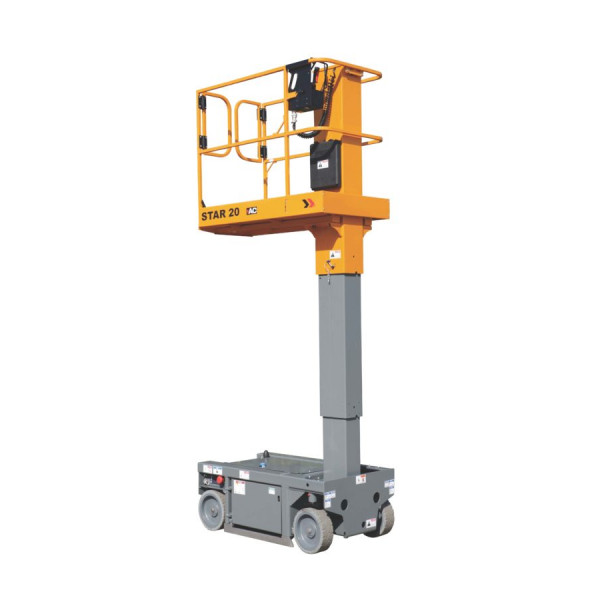

Star20 Vertical Mast Lift
- Go everywhere
- Precision driving and smooth controls
- Easy access to the platform: dedicated anti-slip step and walkable plinth
- Agile machine with mobile pothole protection
- Intuitive control box with battery charge indicator in platform
- Smart transportability & lifting
- Platform extension deck (+ 16 in)
- The best value for the money
- Durable machine
- 4- stage cylinder mast with no chain or cable
- Minimal maintenance & downtime
- Electric drive with brushless AC motors
Star20 Vertical Mast Lift Specifications:
Working height | 25 ft 8 in |
Platform height | 19 ft 8 in |
Horizontal outreach | N/A |
Lift capacity | 441 lb (1 Pers.) |
Platform size | 31 in x 54 in |
Length | 4 ft 7 in |
Width | 2 ft 7 in |
Height – stowed | 6 ft 6 in |
Wheelbase | 3 ft 6 in |
Ground clearance | 2.36 in |
Drive speed | 0.5 – 2.8 mph |
Turning radius – outside | 5 ft 7 in |
Tires | 13 x 5 |
Batteries | 4 x 6 V – 180 Ah (C5) |
Weight | 2,580 lb |
Tilt alarm | 1.5° / 3° |
Gradeability | 25% |
Driveable at full height up to | 19 ft 8 in |
Hydraulic tank capacity | 1.8 gal |
Lift capacity – outside | 441 lb (1 pers.) |
Platform size with extension | 31 in x 71 in |
Industrial Man Lifts is your aerial access solution provider. We can customize any product for any size job. Operators always standing by, (727) 490-8839
