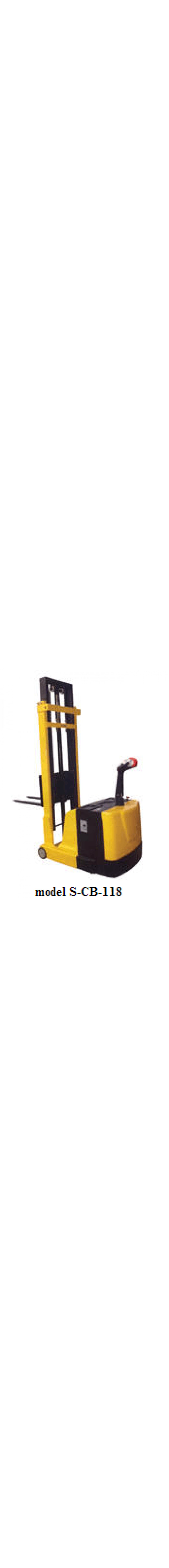

Counter-Balanced Powered Drive Lift
Counter-Balanced Powered Drive Lift. Listed models: S-CB-62, S-CB-118, S-2CB-62*, S-2CB-118*; S-CB-62 Fork Size (WxL): 6-3/8 to 23-5/8"x30".
Quote Only
Industrial Access Equipment
Stacker with Powered Drive and Powered Lift
Stacker with Powered Drive and Powered Lift. Listed models: S-62-FA, S-62-AA, S-118-AA, S-150-AA and additional configurations; S-62-FA Fork Size (O.D.) (WxL): 26-3/4"x42".
Material Stackers Quote-based pricing
Get pricing & availability
Expert help choosing the right configuration.
Spec guidance • Industrial use cases
Type
Material Stackers
Capacity
Request capacity guidance
Category
Material Handling Equipment
Key Feature
Fast quote turnaround
Product description
Stacker with Powered Drive and Powered Lift is offered in the listed configurations S-62-FA, S-62-AA, S-118-AA, S-150-AA, S-62-FF, S-118-FF. Compare each row separately; dimensions and capacities belong to the model identified in that row.
Proprietary safety-enhancing emergency reverse function When actuated, the emergency reverse belly switch instantly reverses direction and moves the unit forward (away from the operator) until the switch is released or after five seconds have elapsed.
The built-in safety circuit will automatically disable the entire unit if the emergency reverse belly switch is activated for more than 5 seconds after which the unit must be re-set to return to normal operating conditions.
This state-of-the-art safety device provides a level of operator protection which is unmatched by any unit on the market today.
Two battery options are available; Absorbed Glass Matt, suffix AGM or Gel Cell, suffix GC.
Both batteries are completely maintenance free.
Sealed construction eliminates periodic watering and corrosive acid fume spills.
For Stacker with Powered Drive and Powered Lift, the catalog lists Listed models: S-62-FA, S-62-AA, S-118-AA, S-150-AA and additional configurations; S-62-FA Fork Size (O.D.) (WxL): 26-3/4"x42"; S-62-FA Lowered Height: 2-1/2". Match these details to the configuration being quoted; options and model variants may differ.
Before you specify this product
- Confirm load weight, center of gravity and load dimensions.
- Confirm required lifting range, travel route and equipment clearances.
- Confirm floor conditions, load support and equipment operating limits.
Selection considerations
- Confirm load weight, center of gravity and load dimensions.
- Confirm required lifting range, travel route and equipment clearances.
- Confirm floor conditions, load support and equipment operating limits.
Material handling
Specifications
Readable, scan-friendly specs for fit and capacity.
| Category | Material Stackers |
|---|
Technical data & configurations
Compare the listed model and configuration details. Confirm current specifications with the documentation supplied for your quote.
| Stacker with Powered Drive and Powered Lift | ||||||||
| Model | Fork Size (O.D.) (WxL) | Lowered Height | Raised Height | Capacity 0"-62" Raised Height | Capacity 62"-118" Raised Height | Capacity 118"-150" Raised Height | Wt. (lbs) | |
| Fixed Forks/ Adjustable Support Legs (works with pallets & skids) | ||||||||
| S-62-FA | 26-3/4"x42" | 2-1/2" | 62" | 2,000 lbs. | - | - | 1288 | |
| Adjustable Forks/ Adjustable Support Legs (works with pallets & skids) | ||||||||
| S-62-AA | 26-3/4"x42" | 2"-1/8" | 62" | 2,000 lbs. | - | - | 1454 | |
| S-118-AA | 26-3/4"x42" | 2"-1/8" | 118" | 2,000 lbs. | 1,500 lbs. | - | 1619 | |
| S-150-AA | 26-3/4"x42" | 2-1/8" | 150" | 2,000 lbs. | 1,500 lbs. | 1,000 lbs. | 1720 | |
| Fixed Forks/ Fixed Support Legs (works with skids only) | ||||||||
| S-62-FF | 26-3/4"x42" | 3-3/8" | 62" | 2,000 lbs. | - | - | 1196 | |
| S-118-FF | 26-3/4"x42" | 3-3/8" | 118" | 2,000 lbs. | 1,500 lbs. | - | 1381 | |
| Battery Options | ||||||||
| AGM-UPG-2-12V | AGM Battery (2x12V) | 80 | ||||||
Need help choosing the right equipment?
Tell us your requirements and we’ll recommend the best-fit configuration and provide pricing.
Related Products
More options from the same category and similar equipment.

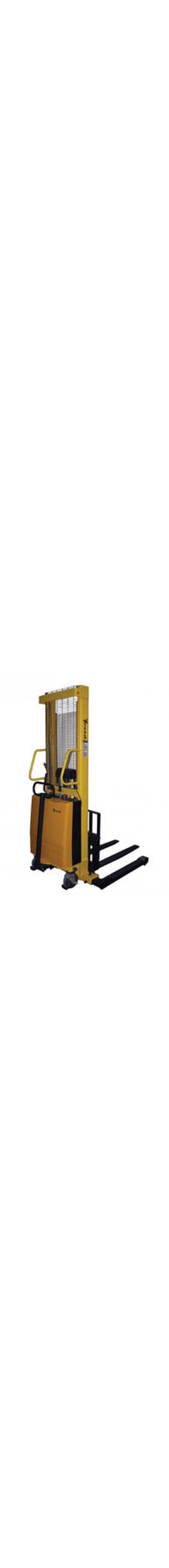

Stacker with Powered Lift
