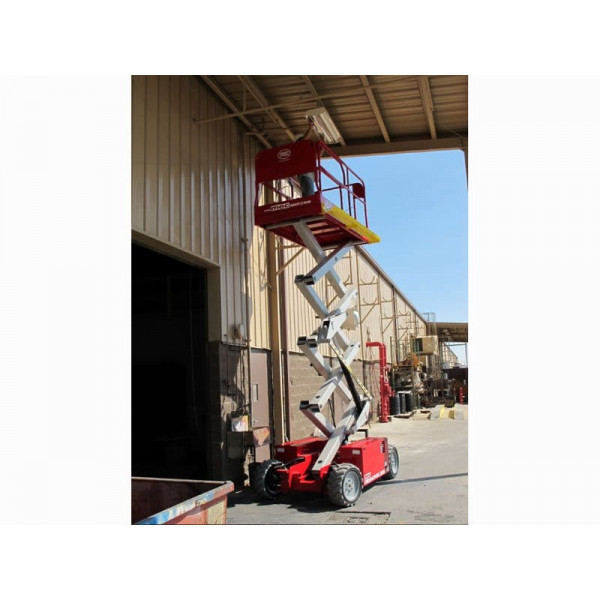

3259ERT DC Battery Powered Scissor Lift

Industrial Grade 3259ERT Electric Scissor Lifts -CROSSOVER ERT SERIES

  • 26- and 32-ft (8- and 9.75-m) Platform Heights
  • Fully Proportional Drive & Lift Controls
  • Rough Terrain Capability
  • Paired With Slab Size & Sensibility
  • 4-Wheel Drive, 48v DC Power
  • 59 (150 cm) Overall Width
  • No-Maintenance Scissor Bearings
  • Roll-Out Deck Extension with Incremental Lock Positions
  • Standard Integrated
  • Sheet Material Rack
  • Patented Powerlift2 Scissor System - Built Strong, Works Tough
  • Outrigger Support For Platform
  • Stability On Heavy Duty Jobsites with One-Touch Auto Leveling
3259ERT DC Battery Powered Features: Work Area
  • Roll-out deck extension with incremental locking positions
  • Large sheet loading entrance accommodates
  • 48€ (1.22 m) material
  • 110V Power to Platform
  • Integrated sheet material rack designed and approved by the manufacturer
Performance
  • 4-Wheel Drive,48v DC Power
  • Fully Proportional Drive and Lift Controls
Power
  • Eight 6V 250 Ah Industrial Deep Cycle Batteries
Serviceability
  • Lubrication-FreeScissor Bearings
  • Easy maintenance access to mechanical and electrical components without raising platform or swinging out trays
  • Logically grouped components and numbered wiring for easy reference
Safety
  • Dedicated compartments protect electrical and hydraulic components
  • Emergency shut off at platform and lower controls
  • Non-Skid Steel Deck Construction
  • Descent Alarm
  • Drive Speed Interlock
  • Multi-AxisTilt Sensor
  • Multiple Disc Brakes, manual brake release
  • Scissor Maintenance Lock
  • Dual Automatic Parking Brake
  • Automatic Pothole Protection


3259ERT DC Electric Scissor Lift Specifications:

DIMENSIONS
 Length  105 in. (2.67 m) 99 in. (2.5 m) without step
 Height  Working: 38 ft. (11.75 m) Maximum Drive: 32 ft. (9.75 m) Stowed (Top Guardrail): 96 in. (2.44 m) Stowed (Rails Folded): 82 in. (2.09 m) Guardrail: 43-3/8 in. (1.1 m) Toeboard: 6 in. (15 cm)
 Width  59 in. (1.5 m)
 Weight  6,950 lbs. (3,150 kg)
 Ground Clearance  6 in. (15 cm)
 Wheelbase  82 in. (2.1 m)
 Turning Radius  Inside: 59 in. (1.5 m)
 BATTERY
 Battery  48V DC, 250Ah battery pack
 HYDRAULICS
 Hydraulic System  4-wheel drive
 PERFORMANCE
 Tires  23 x 10.5 in. (58 x 26.7 cm)
 Travel Speed  Stowed: 3.1 mph (5 km/h) Raised: 0.4 mph (0.65 km/h)
 Gradeability  31% / 17°
 Capacity  2 person, 500 lbs. (225 kg) Lift: 750 lbs. (340 kg) Roll-Out Deck: 250 lbs. (113 kg) Sheet Rack: 250 lbs. (113 kg)
 Platform Height  32 ft. (9.75 m) 51 in. (1.3 m) floor
 Platform Size  Extended Length: 133.5 in. (3.39 m) Retracted Length: 91 in. (2.31 m) Roll-Out Deck: 42.25 in. (1.07 m) Width: 46 in. (1.17 m) Sheet Rack: 8 in. (20 cm)
Industrial Manlifts is YOUR total aerial access solution provider. We can customize any aerial access solution for any project. Operators standing by, (888) 730-8377.
