Telehandlers HTL 9055

The Telehandler HTL 9055 is part of the range of aerial work platforms / diesel Telehandlers for material lifting and earth moving. Automatic oscillation locking on rear supports allowing a significant improvement in platform lateral stability when handling goods Possible combination of mast / telescopic / arm / excavation and accessories movements Ergonomic and flexible joystick with 4 integrated proportional functions Hydrostatic transmission 4-wheel drive and steering Stabilisers Tilt corrector: ±10° Smooth approach movements thanks to inching system ROPS/FOPS cabin with heating and ventilation Maximum lift height 54 ft 10 in Maximum lift capacity (lb) 9000 Reach at maximum fork height 7 ft 10 in Lift capacity at full height (lb) 5500 Maximum forward reach 42 ft 2 in Lift capacity at full reach (lb) 1550 Length 22 ft 2 in Width 8 ft Overall height 8 ft 9 in Turning radius (outside wheels) 14 ft 9 in Maximum power 74.9 kW – 101.8 hp Weight with forks (lb) 26681 Telehandlers HTL 9055 for earth and material lifting. For more information or to order the Telehandlers HTL 9055, call (727) 490-8839. IndustrialManLifts.com is your aerial access solution provider.

Written By Industrial Man Lifts

On January 14, 2012
"

Read more

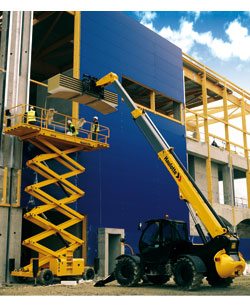

The Telehandler HTL 9055 is part of the range of aerial work platforms / diesel Telehandlers for material lifting and earth moving.

  • Automatic oscillation locking on rear supports allowing a significant improvement in platform lateral
    stability when handling goods
  • Possible combination of mast / telescopic / arm / excavation and accessories movements
  • Ergonomic and flexible joystick with 4 integrated proportional functions
  • Hydrostatic transmission
  • 4-wheel drive and steering
  • Stabilisers
  • Tilt corrector: ±10°
  • Smooth approach movements thanks to inching system
  • ROPS/FOPS cabin with heating and ventilation
Maximum lift height 54 ft 10 in
Maximum lift capacity (lb) 9000
Reach at maximum fork height 7 ft 10 in
Lift capacity at full height (lb) 5500
Maximum forward reach 42 ft 2 in
Lift capacity at full reach (lb) 1550
Length 22 ft 2 in
Width 8 ft
Overall height 8 ft 9 in
Turning radius (outside wheels) 14 ft 9 in
Maximum power 74.9 kW – 101.8 hp
Weight with forks (lb) 26681
Telehandlers HTL 9055 for earth and material lifting. For more information or to order the Telehandlers HTL 9055, call (727) 490-8839. IndustrialManLifts.com is your aerial access solution provider.
