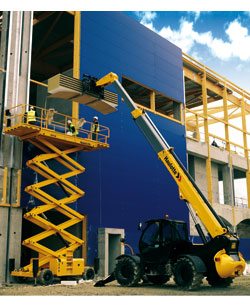

HTL 9045 Telehandler

The Telehandler HTL 9045 is part of the range of aerial work platforms / diesel Telehandlers for material lifting and earth moving.

  • Automatic oscillation locking on rear supports allowing a significant improvement in platform lateral
    stability when handling goods / materials
  • Possible combination of mast / telescopic / arm / excavation and accessories movements
  • Ergonomic and flexible joystick with 4 integrated proportional functions
  • Hydrostatic transmission
  • 4-wheel drive and steering
  • Stabilisers
  • Tilt corrector: ±10°
  • Smooth approach movements thanks to inching system
  • ROPS/FOPS cabin with heating and ventilation
Maximum lift height44 ft 7 in
Maximum lift capacity (lb)9000
Reach at maximum fork height4 ft 11 in
Lift capacity at full height (lb)6600
Maximum forward reach32 ft 2 in
Lift capacity at full reach (lb)2200
Length21 ft 3 in
Width8 ft
Overall height8 ft 9 in
Turning radius (outside wheels)14 ft 9 in
Maximum power74.9 kW – 101.8 hp
Weight with forks (lb)25137
Telehandlers HTL 9045 for earth and material lifting. For more information or to order the Telehandlers HTL 9045, call (888) 730-8377. is your aerial access solution provider.
