Compact 3947 E Scissor Lift


January 8, 2012 Facebook Twitter LinkedIn Google+ News

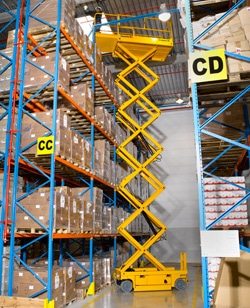

Compact 3947 E Scissor Lift

The scissor lift Compact 3947 E is part of the range of aerial work platforms /electrical scissor lift for people and material lifting.

  • 772 lb platform capacity
  • 3 ft 11 in width allows operation in the most congested areas
  • 6 in ground clearance allows for both inside and outside use
  • Pothole protection ensures maximum safety
  • High operating autonomy
  • Robust, reliable and easy to maintain design
Working height45ft 4in
Platform height39 ft 4 in
Lift capacity (lb)772 lb
Platform size3 ft 11 in x 7 ft 7 in
Stowed Height8 ft 2 in
Width3 ft 11 in
Length8 ft 0 in
Gradeability (%)23%
Turning radius (outside wheels)8 ft 2 in
Power source24V – 255 Amph (C5)
Weight (lb)6,990 lb

Compact 3947 E Scissor Lift people and material lifting. For more information or to order the Compact 3947 E Scissor Lift, call (888) 730-8377. IndustrialManLifts.com is your aerial access solution provider.
