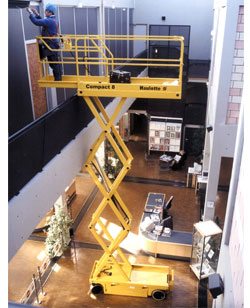

Compact 2032 E Scissor Lift

The scissor lift Compact 2032 E is part of the range of aerial work platforms / electrical scissor lift for people and material lifting. Stowed height allows passage through standard doorways 32 in width allows operation in the most congested areas 7 ft 9 in outside turning radius ensures excellent maneuverability 5 in ground clearance allows for both inside and outside use Pothole protection ensures maximum safety High operating autonomy Robust, reliable and easy to maintain design Working height 26ft 4in Platform height 20ft 4in Lift capacity (lb) 772 lb Platform size 7ft 7in x 2ft 7in Height (stowed) 6ft 6in Width 2ft 8in Length 8ft 2in Gradeability (%) 25 Power source 24V – 180 Amp/h C5 Weight (lb) 3815 Compact 2032 E Scissor Lift for people and material lifting. For more information or to order the Compact 2032 E Scissor Lift, call (888) 730-8337. IndustrialManLifts.com is your aerial access solution provider.

Written By Industrial Man Lifts

On January 7, 2012
"

Read more

The scissor lift Compact 2032 E is part of the range of aerial work platforms / electrical scissor lift for people and material lifting.

  • Stowed height allows passage through standard doorways
  • 32 in width allows operation in the most congested areas
  • 7 ft 9 in outside turning radius ensures excellent maneuverability
  • 5 in ground clearance allows for both inside and outside use
  • Pothole protection ensures maximum safety
  • High operating autonomy
  • Robust, reliable and easy to maintain design
Working height 26ft 4in
Platform height 20ft 4in
Lift capacity (lb) 772 lb
Platform size 7ft 7in x 2ft 7in
Height (stowed) 6ft 6in
Width 2ft 8in
Length 8ft 2in
Gradeability (%) 25
Power source 24V – 180 Amp/h C5
Weight (lb) 3815

Compact 2032 E Scissor Lift for people and material lifting. For more information or to order the Compact 2032 E Scissor Lift, call (888) 730-8337. IndustrialManLifts.com is your aerial access solution provider.
