Bil-Jax 36XT Telescoping Boom Lift

January 13, 2012 Facebook Twitter LinkedIn Google+ News

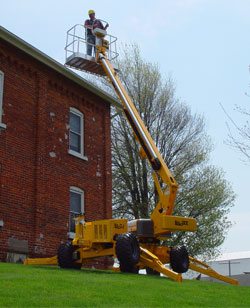

Bil Jax 36XT Telescoping Boom Lift

The Bil-Jax 36XT is part of the range of aerial work platforms / electric telescoping platforms for people and material lifting.


  • High performance 4WD system provides 3.5 mph (5.6 km/h) drive speed and 45% gradeability.
  • Dual power and a narrow machine width makes the 36XT ideal for indoor and outdoor applications.


  • Low point and floor loading is ideal for applications on lawns, landscaping and sensitive flooring applications.
  • Hydraulic outriggers and automatic leveling capabilities allow users to set up and begin using lift functions in under 30 seconds.


  • With a weight of 5,020 lbs. (2,277 kg) operators can transport the 36XT on a utility trailer attached to a medium-duty SUV or truck.
  • No commercial driver’s license required.
Working height43 ft
Maximum Platform height37 ft 6 in
Maximum Horizontal outreach from Centerline32 ft
Turntable Rotation700° non-continuous
Load Capacity500 lb
Stowed Height6 ft 6 in
Stowed Length20 ft 10 in
Stowed Width5 ft 5 in
Platform Length30 in
Platform Width60 in
Total Weight5,020 lbs


Bil-Jax 36XT Telescoping Boom Lift an aerial work platfom for people and material lifting. For more information or to order the Bil-Jax 36XT Telescoping Boom Lift, call (888) 730-8377. is your aerial access solution provider.
