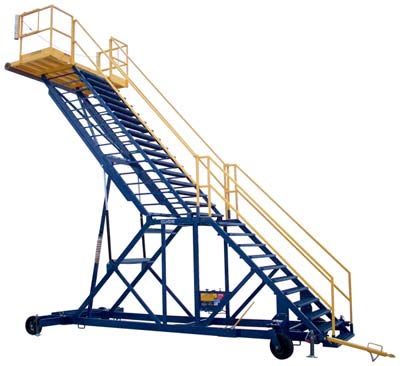

B2 Aircraft Maintenance Platform 15F2698 NSN 1730-00-390-5620

Towable Aircraft Maintenance Stand Features:
• Heavy duty casters for easy movability from job-to-job
• Grip strut steps and platform stay parallel at any height position
• Fully contained hydraulic system

Standard:

• 500 lb capacity

• Hydraulically elevates 10’ to 19’. Hand actuated hydraulic pump with two 2” dia. x 35” stroke lift cylinders. Air over hydraulic system

• 48” x 108” main platform standard, featuring non-slip steel grip- strut floor

• Non-slip steel grip-strut steps, 50” wide, 9 1/2” deep, variable rise 0” to 10”

• Fixed front and swivel rear casters provide ease in maneuverability.

• Hand adjustable screw jacks on each side for stability

• Crew and maintenance access for B747, DC-10, and L1011 main deck and cabin along with A318, A319, A320, A300, A310, A330, A340, B727, B757, B767, B777,

• Parallelogram of welded tubular steel and cross braces automatically keeps platform and steps level with ground.

Aircraft Maintenance Stand Options:
• Wider platforms are available on most stands
• Larger casters with solid or pneumatic tires
• Air over hydraulic pumps can be installed upon request
